Yamaha X-MAX 125 ABS Iron MAX (SE 68) [2016] - Electronic ignition box Force Master 2.1

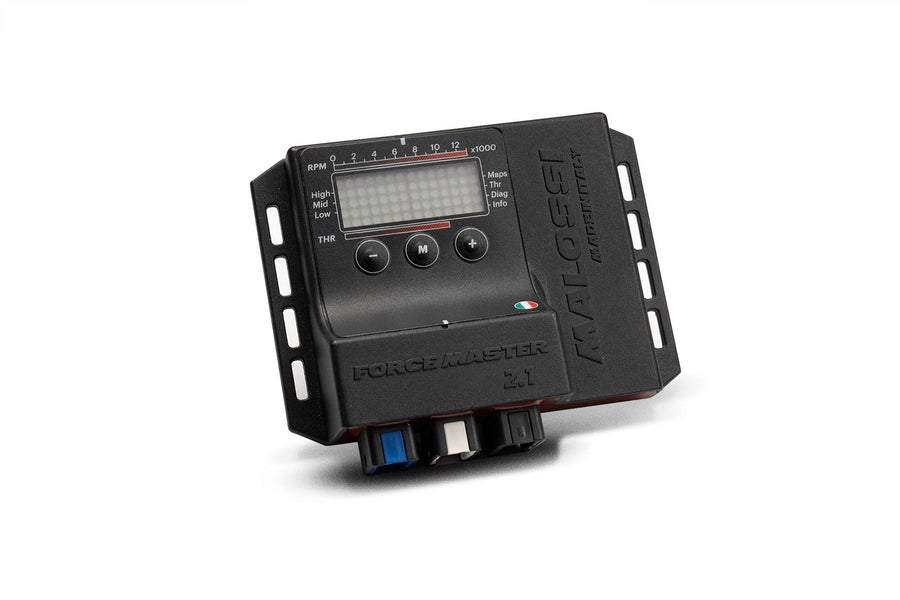

Electronic ignition box Force Master 2.1 for Yamaha X-MAX 125 ABS Iron MAX

The MALOSSI Force Master 2.1 is a control unit for the performance management of the Yamaha X-MAX 125 ABS Iron MAX (SE 68), built in 2016. The revised user interface makes configuration easier. An interface for K and CAN communication lines as well as a capacitive ignition input expand the electronic adaptation options.

Function and setting

The ignition box offers adjustment of the carburettor power in the range of ± 14% for the low, medium and high ranges. In addition, the speed limiter can be adjusted by +1,200 RPM. This allows the engine to move beyond the limit of the original rev limiter.

Technical data

• Temperature range: -30°C to +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Protection class: IP65
• Four different maps
• K and CAN communication interface
• Capacitive ignition input

Maps

• Curve 0: Original exhaust system, original cylinder, original head, original camshaft and original filter
• Curve 1: Original exhaust system, Malossi cylinders, original head, original camshaft and original filters
• Curve 2: Malossi exhaust system with DB killer, Malossi cylinder, original head, original camshaft and original filter
• Curve 3: Malossi exhaust system with DB killer, Malossi cylinder, original head, Malossi camshaft and original filter

Vehicle assignment

Suitable for the Yamaha X-MAX 125 ABS Iron MAX (SE 68), built in 2016.
