BMW R 1300 GS [2024–2026] - Universal GPS Mount

Adjustable GPS mount for secure attachment

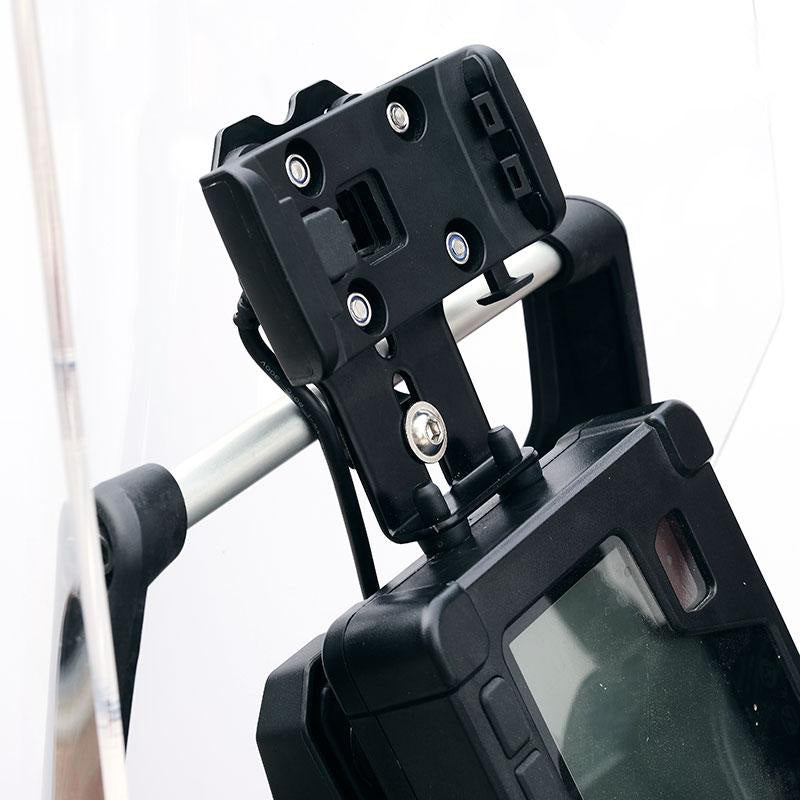

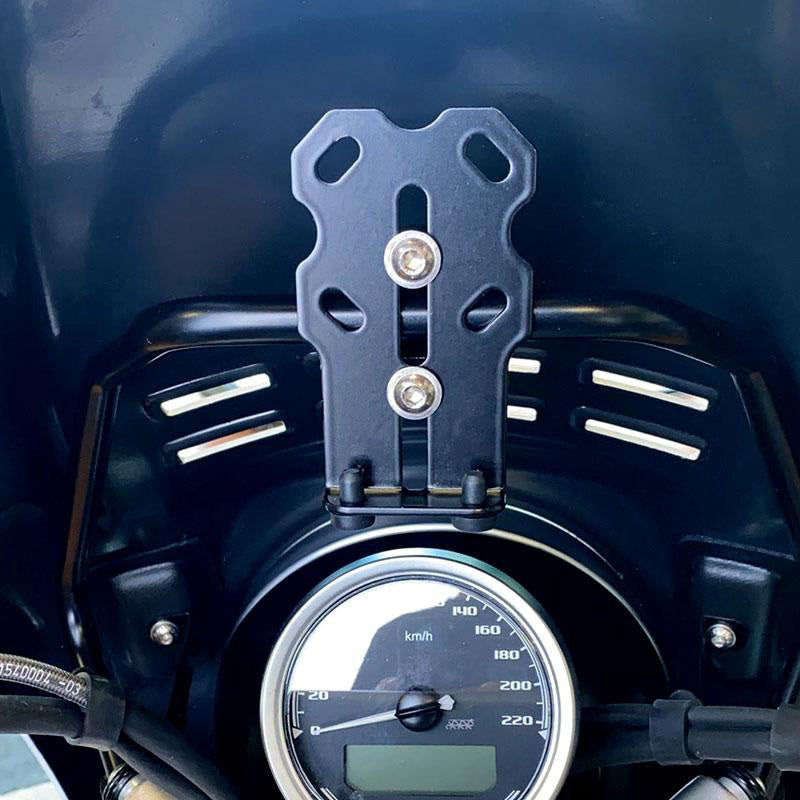

This universal mount allows a navigation device to be securely attached to support tubes with a diameter of 12 to 25 mm. Two CNC-machined Ergal arms and a sliding base allow adaptation to different installation configurations.

Construction and adjustment options

• Attaches to suitable support tubes with a diameter of 12 to 25 mm
• Sliding base made of black-painted, epoxy powder-coated steel
• AMPS mounting standard with 30 × 38 mm hole spacing
• Sliding steel base that can be installed in four different positions depending on the installation configuration
• Two rubber pads on the base provide support

Two CNC-machined Ergal arms

• Black arm for tubes with a diameter of 12 to 18 mm
• Silver arm for tubes with a diameter of 14 to 25 mm

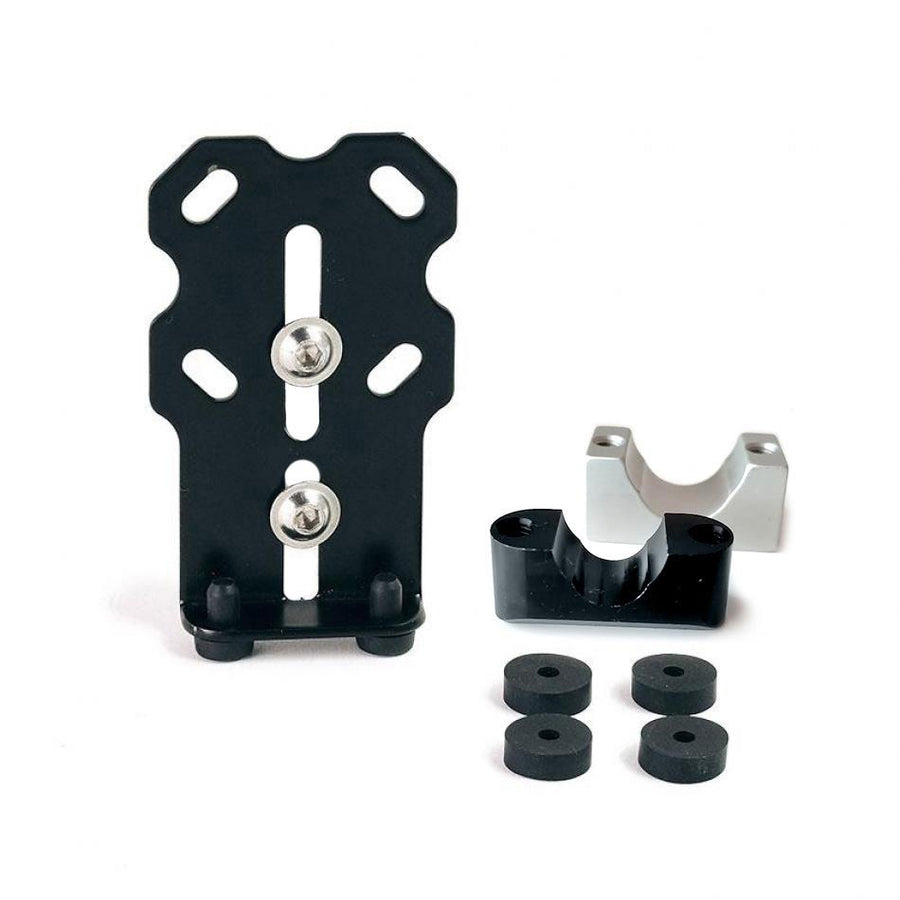

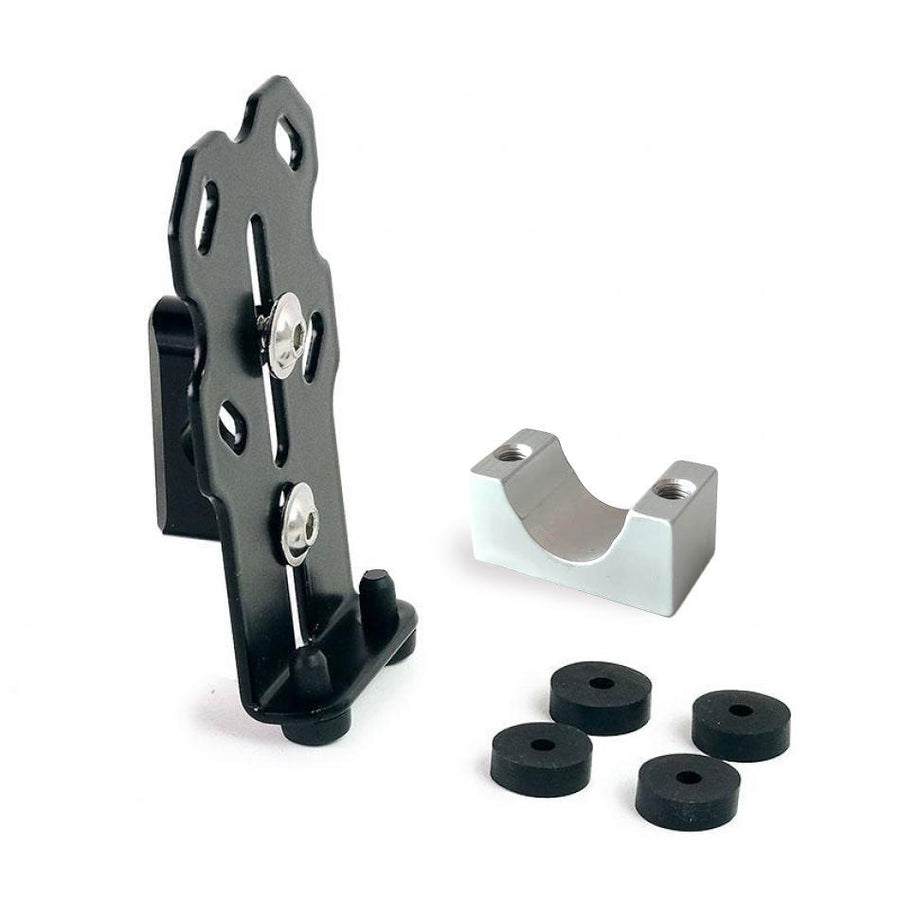

Scope of delivery

• 1 sliding base made of black-painted, epoxy powder-coated steel
• 2 M6 stainless-steel screws
• 2 CNC-machined Ergal arms in different sizes
• 4 rubber spacers for attaching the GPS device to the sliding base

Important installation note

The four screws for attaching the GPS device are not included because their design varies depending on the navigation model. They are usually included with the GPS device.

Compatibility

The mount is listed for the BMW R 1300 GS, among other models. A suitable support tube with a diameter of 12 to 25 mm is essential for installation.

The product is continuously improved in detail. Images may therefore show an earlier version.
